Features
Solid, integrated design makes it safer than ad hoc plastic seat attachments.
Convenience of toddler seat being there when needed and hidden when not required.
Stylish design will compliment any bathroom.
Soft close hinge - no more trapped little fingers.
Easy to fit - simply unscrew existing toilet seat and screw on the Lupi Lu.
Also perfect for the grandparents house.
Hygienically way ahead of the alternatives.
Made from strong polypropylene with a high quality finish.
Fits all standard Australian toilets.


Note: The fixing bolts are offset and can be turned in 4 different directions to ensure the best possible fit to your toilet.

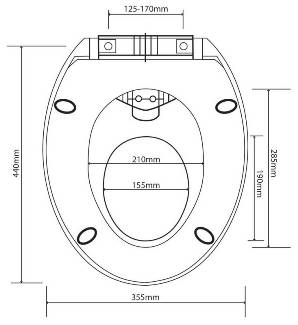

Please refer to the spec drawing for detailed dimensions.
Will it fit?
Let's talk toilet pans. What type do you have?
There are two types of toilet pans currently available.
The first and most common, which we will refer to as a standard pan, features two post holes at the back of the pan to attach a toilet seat. These holes go right through the pan and the bolts and nuts holding your existing toilet seat will be visible from underneath the pan.
The second type of pan has what is commonly referred to as a blind fixing attachment to secure the toilet seat. The post holes in these pans are not visible from underneath the pan and the toilet seat has a fixing plate that screws into the post holes. The toilet seat attaches to this fixing plate.
If you have a standard pan there are couple of measurements you need to check. 1. The post holes in your toilet pan need to be between 125 – 170mm apart. The fixing bolts run along a channel that allows them to be adjusted to fit holes in this range.
2. The post holes in your pan need to be at least 70mm from the closest part of your cistern. This is to ensure the all the seats will stay up when lifted.
If you have a blind fixing pan, there are a couple of measurements you need to check. 1. The post holes in your toilet pan need to be between 145 – 155mm apart. The fixing bolts run along a channel that allows them to be adjusted to fit holes in this range.
2. The post holes in your pan need to be at least 70mm from the closest part of your cistern. This is to ensure the all the seats will stay up when lifted.
How to install the Lupi Lu? 1) Simply unscrew your existing toilet seat.
2) Remove the Lupi Lu from it's box and insert the supplied bolts into the the tabs at each end of the fixing channel.
3) Place the Lupi Lu toilet seat down onto the toilet pan, ensuring the bolts go through the holes.
4) Place the supplied washer and nut on the bolt and tighten. 5) Fix the end caps onto the fixing channel.
PLEASE NOTE: Detailed instructions are included with the Lupi Lu.
Are all the hinges soft close?
No. The soft close hinge operates for the adult seat and the entire lid section (including the toddler seat). The smaller toddler lid has it's own hinge which is not soft close. Does the Lupi Lu come with a warranty?
Yes, the Lupi Lu comes with a 12 month warranty against any manufacturing faults. Renting or moving house, can I take the Lupi Lu with me?
The Lupi Lu can be easily removed if you need to move house. Just keep your old toilet seat when you remove it and screw it back onto the toilet pan once the Lupi Lu is removed.
|
